Japan
THK

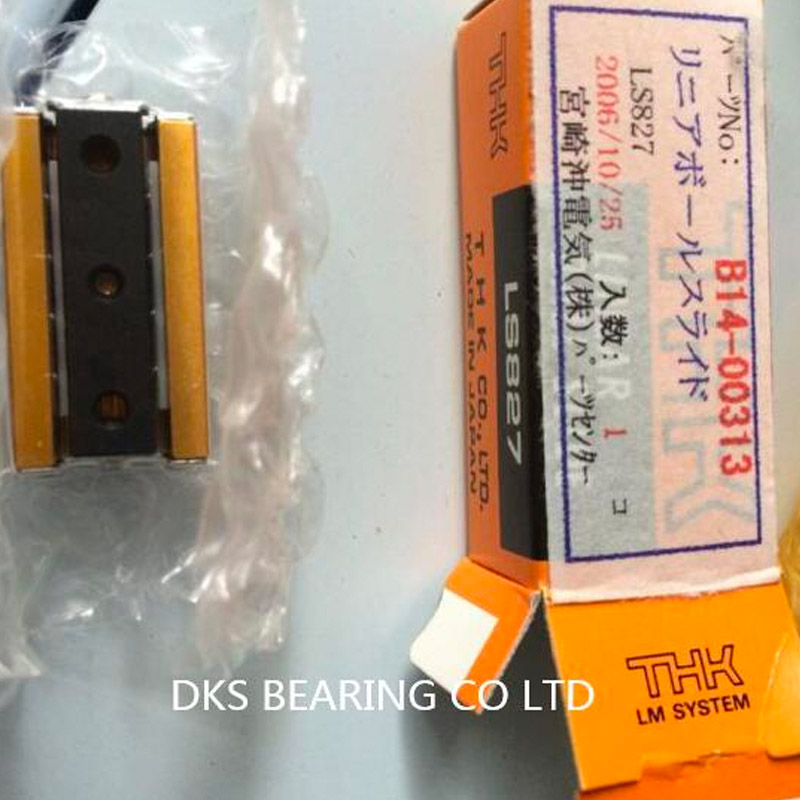

LS827
in stock
advanced high strength
Please consult customer service for details Certification
please consult customer service for details
| Quantity: | |
|---|---|
| Model No. | LS827 | LS852 | LS877 | LS1027 | LS1052 | |||
| Slide dimensions | Max stroke ls | mm | 13 | 25 | 50 | 13 | 25 | |
| Width W &177;0.25 | mm | 8 | 8 | 8 | 10 | 10 | ||
| Height M &177;0.25 | mm | 14.2 | 14.2 | 14.2 | 19 | 19 | ||
| Length L | mm | 28.7 | 53.7 | 78.7 | 28.7 | 53.7 | ||
| T | mm | 7.6 | 7.6 | 7.6 | 9.2 | 9.2 | ||
| L1 | mm | 27 | 52 | 77 | 27 | 52 | ||
| (K) | mm | 0.85 | 0.85 | 0.85 | 0.85 | 0.85 | ||
| B | mm | 5.5 | 5.5 | 5.5 | 8.5 | 8.5 | ||
| F | mm | 16 | 41 | 66 | 16 | 41 | ||
| S×l | mm | M2×3 | M2×3 | M2×3 | M3×3.5 | M3×3.5 | ||
| Base dimensions | Width W1 | mm | 6.2 | 6.2 | 6.2 | 9.6 | 9.6 | |
| Height H | mm | 4.7 | 4.7 | 4.7 | 6.2 | 6.2 | ||
| d1×d2×h | mm | 2.2×3.9×1.4 | 2.2×3.9×1.4 | 2.2×3.9×1.4 | 3.3×6×3.1 | 3.3×6×3.1 | ||
| Length L0 | mm | 27 | 52 | 77 | 27 | 52 | ||
| f1 | mm | 19 | 35 | 60 | 19 | 35 | ||
| Static permissible moment | MA , MB | N-m | 0.2 | 0.49 | 0.88 | 0.29 | 0.78 | |
| MC | N-m | 0.29 | 0.39 | 0.59 | 0.59 | 1.08 | ||
| Basic load rating | C | N | 39.2 | 68.6 | 98 | 58.8 | 108 | |
| C0 | N | 68.6 | 118 | 167 | 108 | 186 | ||
| Mass | g | 9 | 15 | 21 | 13 | 23 | ||
As a professional Linear Motion Guide supplier, we are mainly responsible for the global sales and technical services of THK products. Our warehouses are located in HongKong and ShenZhen City, it is very convenient for demands of global market . Because there are many types of THK products, we can not upload all of them at present. If you have any demand, you can directly contact us.
| Model No. | LS827 | LS852 | LS877 | LS1027 | LS1052 | |||
| Slide dimensions | Max stroke ls | mm | 13 | 25 | 50 | 13 | 25 | |
| Width W &177;0.25 | mm | 8 | 8 | 8 | 10 | 10 | ||
| Height M &177;0.25 | mm | 14.2 | 14.2 | 14.2 | 19 | 19 | ||
| Length L | mm | 28.7 | 53.7 | 78.7 | 28.7 | 53.7 | ||
| T | mm | 7.6 | 7.6 | 7.6 | 9.2 | 9.2 | ||
| L1 | mm | 27 | 52 | 77 | 27 | 52 | ||
| (K) | mm | 0.85 | 0.85 | 0.85 | 0.85 | 0.85 | ||
| B | mm | 5.5 | 5.5 | 5.5 | 8.5 | 8.5 | ||
| F | mm | 16 | 41 | 66 | 16 | 41 | ||
| S×l | mm | M2×3 | M2×3 | M2×3 | M3×3.5 | M3×3.5 | ||
| Base dimensions | Width W1 | mm | 6.2 | 6.2 | 6.2 | 9.6 | 9.6 | |
| Height H | mm | 4.7 | 4.7 | 4.7 | 6.2 | 6.2 | ||
| d1×d2×h | mm | 2.2×3.9×1.4 | 2.2×3.9×1.4 | 2.2×3.9×1.4 | 3.3×6×3.1 | 3.3×6×3.1 | ||
| Length L0 | mm | 27 | 52 | 77 | 27 | 52 | ||
| f1 | mm | 19 | 35 | 60 | 19 | 35 | ||
| Static permissible moment | MA , MB | N-m | 0.2 | 0.49 | 0.88 | 0.29 | 0.78 | |
| MC | N-m | 0.29 | 0.39 | 0.59 | 0.59 | 1.08 | ||
| Basic load rating | C | N | 39.2 | 68.6 | 98 | 58.8 | 108 | |
| C0 | N | 68.6 | 118 | 167 | 108 | 186 | ||
| Mass | g | 9 | 15 | 21 | 13 | 23 | ||
